Model 1398 Patented Mobility Platform with Electric Height Bars
- Motorized height adjustment from 29 to 44 high.
- (4) Direct-drive synchronized lifting columns.
- Control panel located near entry end of bars.
- Push button controls and digital bar height readout.
- 1 ½ dia. Stainless Steel handrails.
- Width adjusts manually from 15 to 28 wide with easy-to-use control knobs.
- Width between uprights is 26 ½.
- 10 Satin-finish hardwood platform with recessed grommeted holes on surface.
- Placement Ladder consists of (11) variably placed Ladder Steps.
- Each Ladder Step has dowel pins, which fit into grommeted holes of platform. The spacing and location of Ladder Steps can be easily adjusted for patients gait training.
- Balance Beam is 65 long x 6 wide x 3 high. Balance Beam is equipped with anti-slip surface and dowel pins.
- Tapered ends with anti-slip tread for easy wheelchair access.
- Control box is double insulated for safety and equipped with 2-prong plug and cord.
- 110V, 60Hz, 2.5 Amps.
MODEL # |
LENGTH | WIDTH* | HEIGHT |
|---|---|---|---|
| 1398 | 10' |
15" - 28" |
29" - 44" |
| *Platform is 38" wide | |||

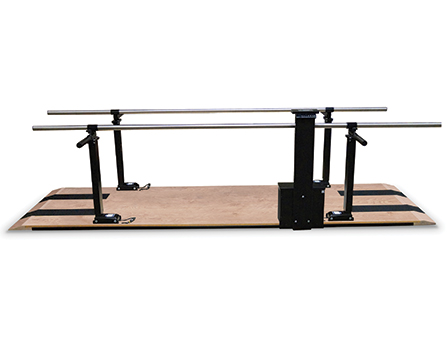

Model 1396 Power Height Parallel Bars
- Same features as Model 1398 except platform has no dowel holes and does not include Ladder Steps or Balance Beam apparatus.
MODEL # |
LENGTH | WIDTH* | HEIGHT |
|---|---|---|---|
| 1396 | 10' |
15" - 28" |
29" - 44" |
| *Platform is 38" wide | |||
