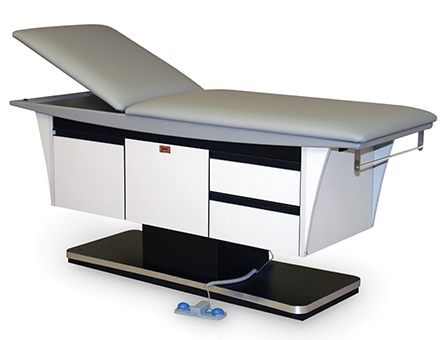

Powermatic® 27″x76″ Treatment Table with Gas-Spring Backrest and Storage Drawers

SKU: 4746,4747 Categories ,

Clear Selections
an asterisk (*) denotes required fields

Table Options (A72 A74 A75 A76 A77 A78 A81 A04 99L)

  • Misc *

    Safety Strap (A04)
    Left Hand Table (99L)
  • Logo *

    No Logo (NO-LOGO)
    Debossed Logo (A72)
    Embossed Logo – 1 Color (A74)
    Embossed Logo – 2 Color (A75)
    Embossed Logo – 3 Color (A76)
    Embossed Logo – 4 Color (A77)
    Embossed Logo – 5 Color (A78)
    Logo Cap, 27″ (Min Qty. 8) (A81)
  • Logo Plate - Deboss *

    Logo Plate – Deboss (A71)

    If you have not ordered this logo before, then a logo plate must be purchased.

  • Logo Plate - Emboss *

    Logo Plate – Emboss (A73)

    If you have not ordered this logo before, then a logo plate must be purchased.

Logo Cap Color

  • Logo Cap Color *

Product total

Options total

Grand total

Quantity:

Description

  • Powermatic® electro-mechanical drive mechanism provides an infinite number of height positions.
  • Patients can mount or dismount without a footstep. You can work faster and more efficiently without back strain or fatigue.
  • Gas-spring pneumatic 30” backrest elevates to 75° with lever control on both sides.
  • 2” High-Density urethane foam vinyl top.
  • “Hands Free” foot control operation.
  • (2) laminate drawers on nylon rollers.
  • Hinged door storage compartment.
  • Includes Paper Dispenser and Cutter.
  • Hospital grade plug. 110V, 60Hz, 3.5 Amps.
  • New contoured black base plate with (4) levelers and satin aluminum trim.
  • Shipped fully assembled.
  • Laminate: Folkstone Gray or choice of any high pressure laminate solid color or woodgrain.
  • Upholstery: Choice of (18) standard vinyl colors.

Additional information

Back Rest

Gas Spring Backrest, Electric Backrest

Upholstery Color

Black V23 (Pro-FORM), Navy V19 (Pro-FORM), Dove Gray V20 (Pro-FORM), Forest Green V21 (Pro-FORM), Deep Wine V22 (Pro-FORM), American Beauty V24 (Pro-FORM), Claret V25 (Pro-FORM), Royal Blue V26 (Pro-FORM), Regimental Blue V28 (Pro-FORM), Burgundy V11 (ComfortPLUS), Oak Brown V12 (ComfortPLUS), Rodeo Tan V13 (ComfortPLUS), Nordic Blue V14 (ComfortPLUS), Slate Blue V15 (ComfortPLUS), Black V16 (ComfortPLUS), Gray V17 (ComfortPLUS), Grotto Green V18 (ComfortPLUS)

Laminate Color

Folkstone Gray L02

Measurements

Weight Capacity: 400 lbs. (181kg)

MODEL # LENGTH WIDTH HEIGHT Vinyl Laminate
4746* 76″(193cm) 27″(69cm) 26″ – 38″(66 – 97cm) Custom Custom
4747 (not shown) 76″(193cm) 27″(69cm) 26″ – 38″(66 – 97cm) Custom Custom

Color accuracy may vary according to yout monitor’s color settings. Color samples may be obtained from Customer Service.

Troubleshooting

  1. Check that all connections are secure, and that the unit is plugged into the wall.
  2. Check that the green light on the control box is on, if it is not, there is no power to the system.
  3. Verify that the wall outlet is providing power, if it is, then the control box needs to be replaced.
  4. Email the serial number of your product to techsupport@hausmann.com and request the part number for the control box.

  1. Check the foot switch cord for damage (exposed wires, pinched points, etc.)
  2. Check the connection of the foot switch into the control box, the plug needs to be fully inserted to operate correctly.
  3. Press on the foot switch and the control box should make a “Click” sound. If no sound is heard, it could be a non-functioning foot switch.
  4. Email the serial number of your product to techsupport@hausmann.com and request the part number for the foot switch.

  1. Check the connection between the control box and the actuators.
  2. Email the serial number of your product to techsupport@hausmann.com and request the part number for the actuator.

How to Buy

As a manufacturer, Hausmann only sells to Medical Dealers.
Please contact us to find a local dealer.
